Opik Integration

Overview

Comet Opik is a comprehensive observability platform designed for agentic systems. The bridgic-traces-opik package enables seamless integration of Opik into your Bridgic-based agentic workflows.

This integration is primarily supported by OpikTraceCallback, a WorkerCallback implementation that automatically instruments the worker execution with Opik tracing, which provides comprehensive observability by:

  • Worker Execution Traces Tracking: Record the execution of each worker as a span in Opik, allowing to visualize start/end time, duration.
  • Worker Execution Data Reporting: Capture the input, output and other necessary information and then log to the opik platform.
  • Hierarchical Trace Structure: Organize execution traces in a hierarchy that reflects the nesting between automa layers, making it straightforward to see how top-level automa is composed of the execution of multiple nested workers.

Prerequisites

Comet provides a hosted version of the Opik platform, or you can run the platform locally.

Using Opik in Bridgic

Step 1: Install package

1
2
# Automatically install the Opik package
pip install bridgic-traces-opik

Step 2: Register the callback

You can register Opik tracing at the scope that best fits your application. start_opik_trace is the fastest path (a single line that configures global tracing via GlobalSetting). When you want to customize the same global setup or target only a specific automa, Bridgic exposes direct hooks for both use cases.

Method 1: Application-wide registration (helper or manual)

Pick one of the three options below—they produce the exact same runtime behavior:

1
2
from bridgic.traces.opik import start_opik_trace
start_opik_trace(project_name="bridgic-integration-demo", api_key="your-api-key")

1
2
from bridgic.traces.opik import start_opik_trace
start_opik_trace(project_name="bridgic-integration-demo", use_local=True, host="http://localhost:5173/api")

1
2
3
4
5
6
7
8
from bridgic.core.automa.worker import WorkerCallbackBuilder
from bridgic.core.config import GlobalSetting
from bridgic.traces.opik import OpikTraceCallback

GlobalSetting.set(callback_builders=[WorkerCallbackBuilder(
    OpikTraceCallback,
    init_kwargs={"project_name": "bridgic-integration-demo", "api_key": "your-api-key"}
)])

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
from bridgic.core.automa import GraphAutoma, worker
from bridgic.traces.opik import start_opik_trace

class DataAnalysisAutoma(GraphAutoma):
    @worker(is_start=True)
    async def collect_data(self, topic: str) -> dict:
        """Collect data for the given topic."""
        # Simulate data collection
        await asyncio.sleep(1)
        return {
            "topic": topic,
            "data_points": ["point1", "point2", "point3"],
            "timestamp": "2024-01-01"
        }

    @worker(dependencies=["collect_data"])
    async def analyze_trends(self, data: dict) -> dict:
        """Analyze trends in the collected data."""
        # Simulate trend analysis
        await asyncio.sleep(1)
        return {
            "trends": ["trend1", "trend2"],
            "confidence": 0.85,
            "source_data": data
        }

    @worker(dependencies=["analyze_trends"], is_output=True)
    async def generate_report(self, analysis: dict) -> str:
        """Generate a final report."""
        await asyncio.sleep(1)
        return f"Report: Found {len(analysis['trends'])} trends with {analysis['confidence']} confidence."

async def automa_arun():
    # Call either start_opik_trace(...) or GlobalSetting.set(...) once at startup
    start_opik_trace(project_name="bridgic-integration-demo", api_key="your-api-key")
    automa = DataAnalysisAutoma()
    result = await automa.arun(topic="market analysis")
    print(result)

if __name__ == "__main__":
    import asyncio
    asyncio.run(automa_arun())

Method 2: Per-automa scope with RunningOptions

When only a specific automa needs tracing, configure the callback through RunningOptions. Each automa gets its own callback instance, leaving other automa untouched.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
from bridgic.core.automa import GraphAutoma, RunningOptions, worker
from bridgic.core.automa.worker import WorkerCallbackBuilder
from bridgic.traces.opik import OpikTraceCallback

class DataAnalysisAutoma(GraphAutoma):
    @worker(is_start=True)
    async def collect_data(self, topic: str) -> dict:
        """Collect data for the given topic."""
        # Simulate data collection
        await asyncio.sleep(1)
        return {
            "topic": topic,
            "data_points": ["point1", "point2", "point3"],
            "timestamp": "2024-01-01"
        }

    @worker(dependencies=["collect_data"])
    async def analyze_trends(self, data: dict) -> dict:
        """Analyze trends in the collected data."""
        # Simulate trend analysis
        await asyncio.sleep(1)
        return {
            "trends": ["trend1", "trend2"],
            "confidence": 0.85,
            "source_data": data
        }

    @worker(dependencies=["analyze_trends"], is_output=True)
    async def generate_report(self, analysis: dict) -> str:
        """Generate a final report."""
        await asyncio.sleep(1)
        return f"Report: Found {len(analysis['trends'])} trends with {analysis['confidence']} confidence."

async def automa_arun():
    builder = WorkerCallbackBuilder(OpikTraceCallback, init_kwargs={"project_name": "bridgic-integration-demo", "api_key": "your-api-key"})
    running_options = RunningOptions(callback_builders=[builder])
    automa = DataAnalysisAutoma(running_options=running_options)
    result = await automa.arun(topic="market analysis")
    print(result)

if __name__ == "__main__":
    import asyncio
    asyncio.run(automa_arun())

Once your Bridgic application has finished running, your terminal might display the following message:

1
2
3
$ python bridgic-demo/demo.py
OPIK: Started logging traces to the "bridgic-integration-demo" project at http://localhost:5173/api/v1/session/redirect/projects/?trace_id=019a9709-e437-7b30-861e-76006b75e969&path=aHR0cDovL2xvY2FsaG9zdDo1MTczL2FwaS8=
Report: Found 2 trends with 0.85 confidence.

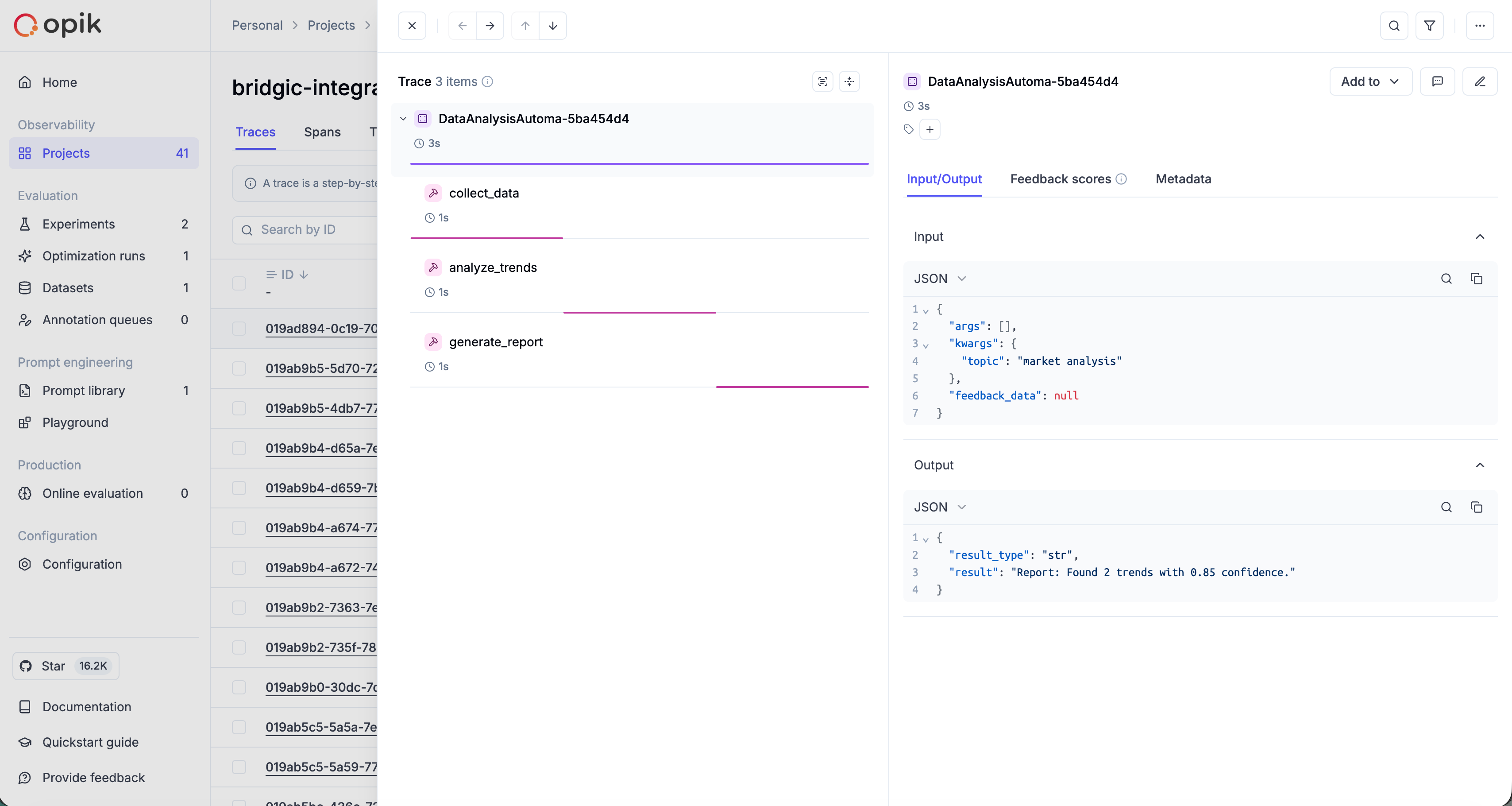

You can dive into the Opik app to explore rich visual insights and detailed traces of your workflow.

bridgic integration opik demo
